Listing Table Sizes

December 24, 2010 – 11:20

Databases are a pain in the neck to look after, poorly designed models and processes that don’t remove temporary data can cause a database to grow in size. A database that is allowed to grow large beyond its requirements becomes a burden on the nightly backup, takes longer to restore in the event of a recovery scenario and slows down the development process by preventing developers from testing things out on “live” data.

More often than not I have found that the problem lies with log or analytic tables sometimes this information is liberally logged (which it should be) and then totally ignored without a thought for trimming the data on a regular basis.

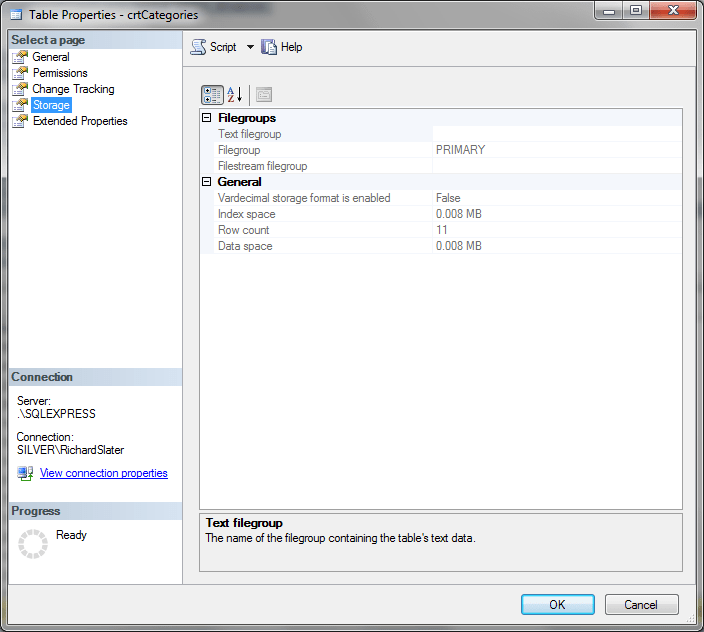

SQL Server Management Studio provides a way of looking at the storage usage of tables individually from the properties context menu item of the table.

SSMS Storage Properties

In large databases this can be laborious, I found a script that will collect this information and present it as a table. I have adapted it a little so that I can see the total size of the table and sort by each column to drill down to the problem tables.

SET NOCOUNT ON
CREATE TABLE #spaceused (
  name nvarchar(120),
  ROWS CHAR(11),
  reserved VARCHAR(18),
  DATA VARCHAR(18),
  index_size VARCHAR(18),
  unused VARCHAR(18)
)

DECLARE TablesFromSysObjects CURSOR FOR
  SELECT name
  FROM sysobjects WHERE TYPE='U'
  ORDER BY name ASC

OPEN TablesFromSysObjects
DECLARE @TABLE VARCHAR(128)

FETCH NEXT FROM TablesFromSysObjects INTO @TABLE

WHILE @@FETCH_STATUS = 0
BEGIN
  INSERT INTO #spaceused EXEC sp_spaceused @TABLE
  FETCH NEXT FROM TablesFromSysObjects INTO @TABLE
END

CLOSE TablesFromSysObjects
DEALLOCATE TablesFromSysObjects

SELECT	name AS TableName,
		ROWS AS ROWS,
		CAST(LEFT(reserved, LEN(reserved) - 3) AS INT) AS Reserved,
		CAST(LEFT(DATA, LEN(DATA) - 3) AS INT) AS DATA,
		CAST(LEFT(index_size, LEN(index_size) - 3) AS INT) AS IndexSize,
		CAST(LEFT(unused, LEN(unused) - 3) AS INT) AS Unused,
		(CAST(LEFT(reserved, LEN(reserved) - 3) AS INT) + CAST(LEFT(DATA, LEN(DATA) - 3) AS INT) + CAST(LEFT(index_size, LEN(index_size) - 3) AS INT) + CAST(LEFT(unused, LEN(unused) - 3) AS INT)) AS Total
FROM #spaceused
ORDER BY Total DESC
DROP TABLE #spaceused
