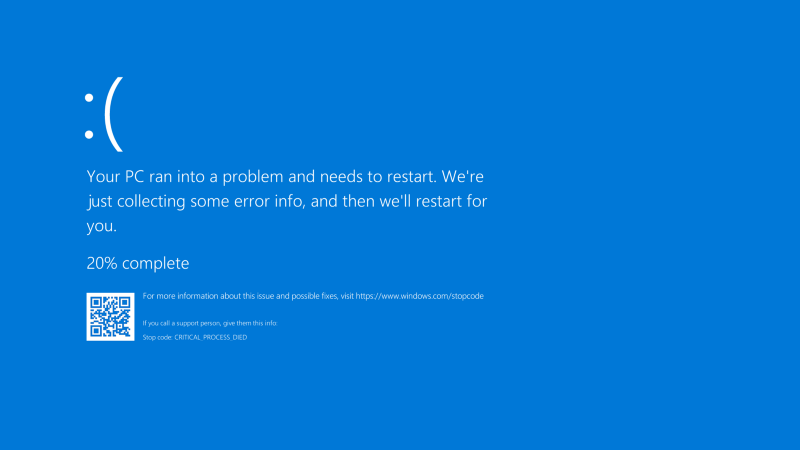

Blue Screen of Death from Wikipedia
Many IT administrators, DevOps, TechOps and SecOps in the UK woke up this morning, to a particularly nasty looking Patch Tuesday. Top of the chat is CVE-2020–16898 which has been dubbed Bad Neighbour by McAfee and Ping of Death by Sophos.
Reality Check
It’s worth realising that this particular CVE has no known exploits, however best case scenario a threat actor could craft a ICMPv6 packet to exploit the RDNSS component of the IPv6 stack built in tcp.sys; the net result a threat actor could cause a Blue Screen of Death (BSOD). There is a worst case scenario of course in that a threat actor could craft a packet that didn’t cause a BSOD, but did allow the actor to execute code against the target system, known as Remote Code Execution (RCE). In reality the worst case scenario is unlikely to happen anytime soon, or even ever as it requires a failure of many lines of defence.
Mitigating the Threat
The best course of action at this stage is to install the update on affected Windows 10 and Windows Server 2019, the full list is available from Microsoft and the updates are now available on Windows Update. This is no less important because there is a also a vulnerability in Microsoft Outlook which may result in Remote Code Execution.
As a quick reference here are the Affected Versions of Windows and the Hotfix that patches the vulnerability:
| Windows Version and Release Id | HotFix |
|---|---|
| Windows 10 1709 | KB4580328 |
| Windows 10 1803 | KB4580330 |
| Windows 10 1809/Windows Server 2019 | KB4577668 |
| Windows 10/Server 1903 | KB4577671 |
| Windows 10/Server 1909 | KB4577671 |
| Windows 10/Server 2004 | KB4579311 |
If you’re not sure what Release ID is, you can get it using the following PowerShell command:
(Get-ItemProperty -Path "HKLM:\SOFTWARE\Microsoft\Windows NT\CurrentVersion" -Name ReleaseId).ReleaseId
If you want to know if the Hotfix is applied to your machine you can run the following PowerShell command:
Get-HotFix KB4579311
This will either return an error message (in red) or will tell you specifically who and when it was installed:
Source Description HotFixID InstalledBy InstalledOn
------ ----------- -------- ----------- -----------
MY-LAPTOP Security Update KB4579311 AzureAD\RichardSl... 2020-10-14 00:00:00
Managing the Threat
If for some reason you are unable to mitigate the threat by applying Windows Updates, for example if you are running a mission critical system preventing machine restarts, then there are still mitigation options open to you.
Disable RDNSS
The component that is vulnerable is part of the IPv6 stack is called RDNSS, or Recursive DNS Service, this can trivially be disabled in Windows 10 or Windows Server without requiring a restart. First find out which interfaces you need to configure with the netsh:
netsh int ipv6 show int
This will give you a list of interfaces, and their index in the idx column:
Idx Met MTU State Name
--- ---------- ---------- ------------ ---------------------------
3 35 1500 connected WiFi
1 75 4294967295 connected Loopback Pseudo-Interface 1
14 25 1500 disconnected Local Area Connection* 1
11 65 1500 disconnected Bluetooth Network Connection
19 25 1500 disconnected Local Area Connection* 2
47 15 1500 connected vEthernet (Default Switch)
8 25 1500 connected Npcap Loopback Adapter
Then for each externally facing interface run the following command, using your idx from the previous command in place of the 3 in my command below:
netsh int ipv6 set int 3 rabaseddnsconfig=disable
The change can be reversed with the following command:
netsh int ipv6 set int 3 rabaseddnsconfig=enable
Disable IPv6
Disabling IPv6 might be throwing the baby out with the bathwater, I would discourage anyone from doing this, although who knows there might be use cases where it makes more sense:
Disabling IPv6 on Network Adapter Windows 10
Block Bad Actors
In the [McAfee Security blog post] (https://www.mcafee.com/blogs/other-blogs/mcafee-labs/cve-2020-16898-bad-neighbor/) they kindly included a set of Suricata rules to block the bad actors from sending malicious packets:
advanced-threat-research/CVE-2020-16898
advanced-threat-research/CVE-2020-16899
Conclusion
As with any incident, don’t panic, stop the bleeding and then repair the damage. There will likely be lots of questions in IT teams today about this vulnerability, as it stands however there are no known exploits, proactive maintenance today will go a long way to protecting your organisation from attacks.
